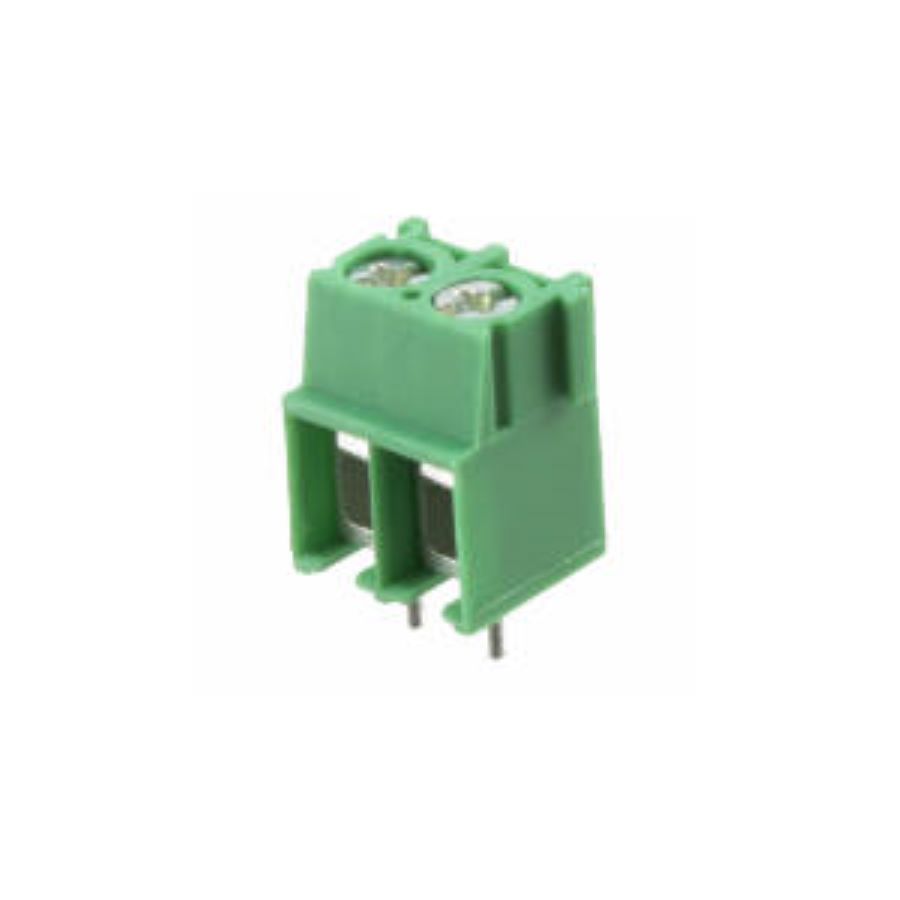

1935776
Manufacturer:
Phoenix Contact
Mfr.Part #:
1935776
Datasheet:
Description:
Terminal Blocks Through Hole 2 5 mm 20 A 300 V 20 AWG to 12 AWG
| Parameter | Value |
|---|---|
| Length | 9 mm |
| Width | 17.6 mm |
| Termination | Solder |
| Number of Pins | 2 |
| Height | 13.5 mm |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 9 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| Weight | 2.42 g |
| Contact Material(Contact Finish) | Tin |
| Pitch | 5 mm |
| Current | 20 A |
| Current Rating | 20 A |
| Max Current Rating | 32 A |
| Approvals | CB, UL, VDE |
| Number of Circuits | 2 |
| Orientation | Straight |
| Max Supply Voltage | 250 V |
| Color | Green |
| Number of Contacts | 2 |
| Number of Poles | 2 |
| Wire/Cable Gauge | 10 AWG |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Polyamide |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 12 AWG |
| Housing Color | Green |
| Connection Method | Screw |
| Wire Gauge Range | 20 AWG to 12 AWG |
